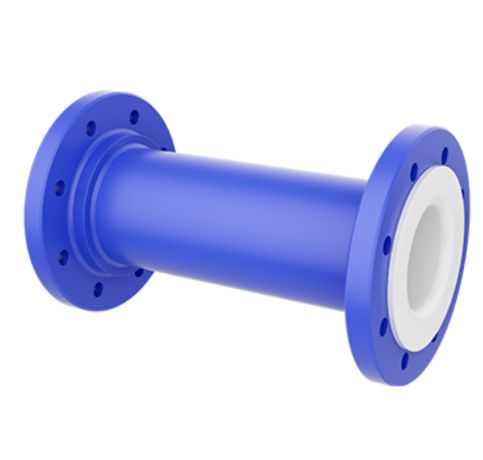

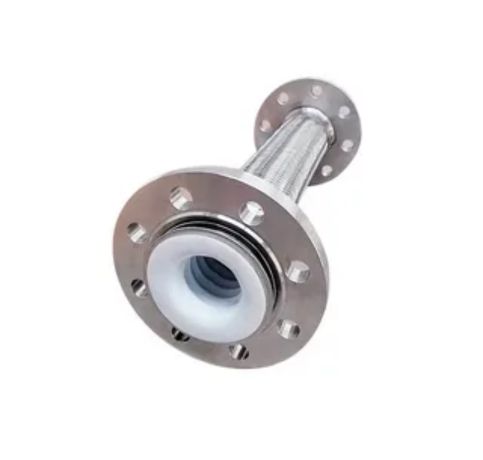

Grayson PTFE Lined Pipe UK is a top-notch manufacturer and supplier of FEP, PTFE, and PFA lined pipes in the UK, providing premium solutions for corrosive and high-temperature use. Our SS 304 PTFE-lined pipes provide unmatched corrosion resistance, while our MS PFA-lined pipes have vent holes for leak detection, providing added safety and reliability. Operating from Midland, we are experts in manufacturing high-quality long-lasting pipes with a perfect finish, providing optimal performance in harsh industrial conditions.
PTFE-lined pipes have a hard chemically inactive coating that is meant to resist pipes and equipment from chemical corrosion and harsh temperatures. Known for their superior chemical resistance, these are the best pipes for handling aggressive chemicals like acids, bases and solvents. With temperature resistance up to 260°C (500°F) these pipes have a smooth, non-stick surface that increases flow efficiency. Made from polytetrafluoroethylene (PTFE) resin and commonly supported by stainless steel PTFE linings provide enduring durability and consistent performance in rugged industrial conditions.
Size : 25 NB to 450 NB
Pipe Material : 106 grade B Sch 40 from 25 NB to 150 NB
Flanges Used : ASTM A 105/IS 2062
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
PIPE : 1. SEAMLESS CS ASTM A106 GR.B, SCH.-40, 2. ASTM A312 TP 304, SCH.-40
FLANGE : 1. IS 2062 / ASTM A105, 2. ASTM A351 GR. CF8
Lining Material Options
PFA – ASTM D 3307
FEP – ASTM D 2116
ETFE – ASTM D 3159
PVDF – ASTM D 3322
PP – ASTM D 4101
HDPE
Grayson PTFE Lined Pipe is a leading supplier of PTFE Lined Pipes in Midland, UK, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| SIZE | Min. Avail Length with flange | Max. Length Avail. | Flange Stopper Thik “J” | Wgt per mtr length | Wgt + ~ 1 mtr | |
| NB | INCH | (mm) | (mm) | (mm) | (Kg) | (Kg) |
| 25 | 1″ | 100 | 6000 | 10 | 5.5 | 3.3 |
| 40 | 1.5″ | 100 | 6000 | 10 | 8.5 | 5.5 |
| 50 | 2″ | 100 | 6000 | 10 | 11.0 | 6.5 |
| 80 | 3″ | 110 | 6000 | 10 | 20.0 | 13.0 |
| 100 | 4″ | 110 | 6000 | 10 | 30.0 | 18.5 |
| 150 | 6″ | 125 | 6000 | 10 | 48.7 | 33.8 |
| 200 | 8″ | 125 | 6000 | 12 | 75.5 | 52.0 |
| 250 | 10″ | 140 | 3000 | 12 | 98.5 | 62.5 |
| 300 | 12″ | 150 | 3000 | 12 | 120.0 | 82.0 |
| 350 | 14″ | 200 | 3000 | 12 | 157.0 | 84.0 |
| 400 | 16″ | 200 | 1500 | 12 | 192.0 | 95.6 |
| 450 | 18″ | 210 | 500 | 15 | 214.0 | 108.0 |
| 600 | 24″ | 240 | 500 | 15 | 335.0 | 145.0 |
Superior protection against corrosive chemicals.
Reduces friction and enhances flow efficiency.
Withstands high temperatures (up to 260°C) and high pressures.
More affordable than expensive alloys, offering similar performance.

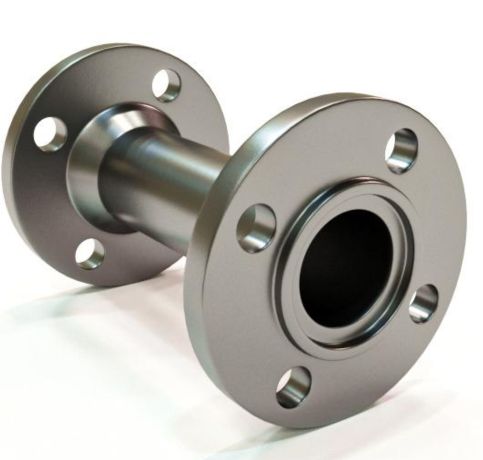

Common base materials include SS 304, SS 316, and MS (Mild Steel), which are then lined internally with PTFE, PFA, or FEP for enhanced chemical resistance.
PTFE lined pipes are used in industries handling corrosive chemicals, high temperatures, or aggressive fluids, such as chemical processing, pharmaceuticals, and oil & gas.
Yes, we offer customized PTFE, FEP, and PFA lined pipes based on client requirements, including variations in length, diameter, and flange types to suit specific industrial applications.
PTFE lined pipes can withstand temperatures up to 260°C (500°F) and are designed to perform under various pressure conditions, depending on the pipe material and lining thickness.
Yes, all MS PFA lined pipes are provided with vent holes for easy leak detection. We follow stringent quality control protocols to ensure defect-free products.
We are the leading Manufacturer and Supplier of Grayson PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Midland, UK.
